DEPT: CHASSIS_RESTORE

1972 Nova Subframe Repair

A comprehensive technical overhaul of the factory subframe and body mount plates to restore structural integrity.

IMG_2287 - Copy.JPG
1972 Nova Subframe & Body Mount Plate Repair (68–74 X-Body)
SUBFRAME INSPECTION
This phase of the 1972 Nova build focuses on repairing and reinforcing the factory subframe body mount plates. These cars are known for rust and fatigue in the mounting areas, which affects chassis stiffness, steering feel, and overall stability.

The bend was visible near the front mounting area, as shown below.
During teardown I found the front subframe was bent. This is common on cars that have been jacked incorrectly or have seen front-end damage. In this case, the mounting holes were also rotted.

To correct the bend, I applied controlled heat and gradually worked the metal back into position. The material in this area is thick, so heat was necessary to move it properly without cracking or distorting it. Throughout the process, I made sure the frame stayed in alignment.

After straightening, I rechecked alignment and confirmed the mounting surfaces were square. I installed bolts in the front core support holes and measured diagonally to other factory mounting holes to verify everything was square before moving forward.


Notes From This Repair

  • Always inspect mounting points before reinforcing
  • Heat control is critical when correcting thick structural steel
  • Verify square before moving to the next stage
Pad hole.PNG
Subframe repair (2000 x 1500 px).jpg
Subframe repair2 (2000 x 1500 px).jpg

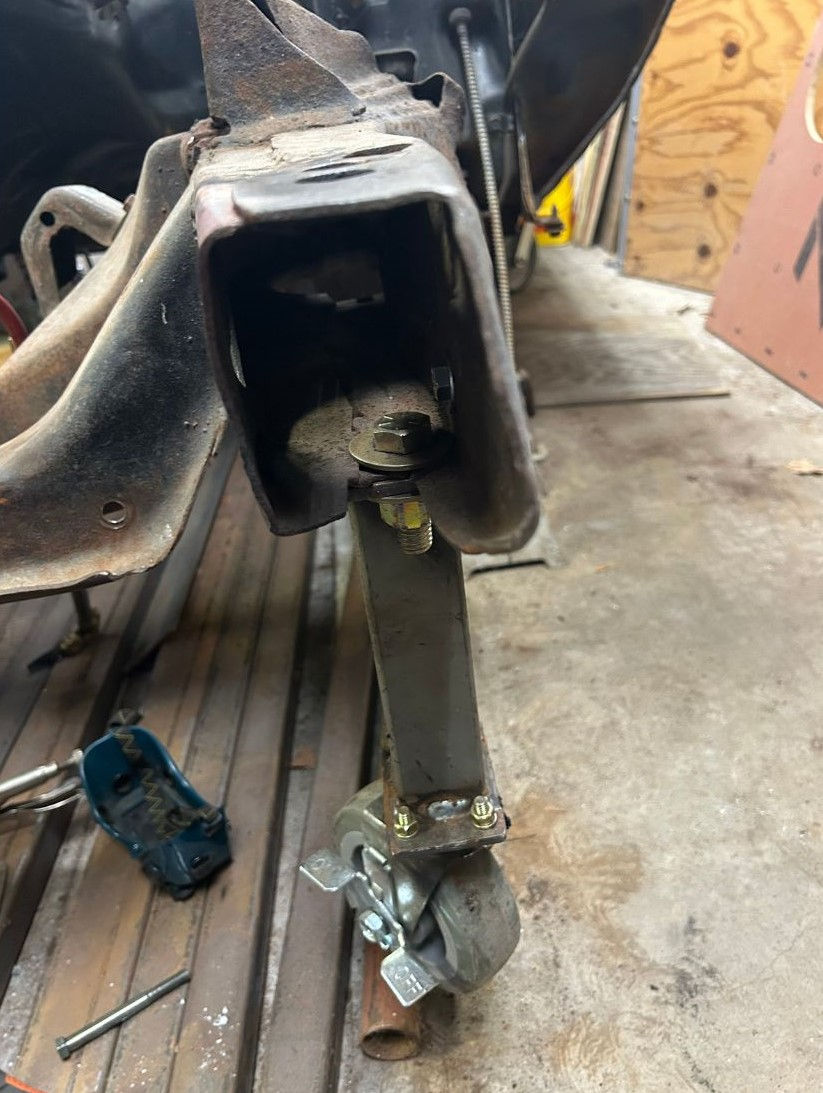

Subframe repair3 (2000 x 1500 px).jpg

BODY MOUNT PAD TEMPLATE

Using cardboard or thick paper, trace a rough outline of the original mount. Use your reference measurements to locate the center of the two mounting holes.

Before moving forward, verify factory dimensions. In my case, I referenced a 1972 Fisher Body Service Manual for measurements. (Custom drawing coming soon.)



DRILLING THE TEMPLATE

Transfer your template to steel.

  1. Drill the two 1/4" holes first.

  2. Drill only ONE 5/8" hole at this stage.

  3. Do NOT drill the second large hole yet — it will be used later for squaring the plates.

Make all four plates at this time.

Two plates will be mirrored left and right. The other two plates may only require one small hole depending on the condition of the original mounts.

TEST FIT & TACKING

Place the new plate over the rotted perch.

  • Use a 5/8" bolt and washer to mount it temporarily.

  • Install a long 1/4" bolt upside down as shown.

  • The longer the bolt is, the better — these will be used for squaring.

Add at least four tack welds per plate.







REAR PLATE METHOD

For the rear mounts, I did not have a clean template. I used what remained of one usable hole:

  • Placed cardboard over the perch

  • Traced from underneath

  • Located center from that reference

Once one plate is made, flip it to create the mirrored side.

Pay close attention to:

  • 1/4" bolt spacing

  • 5/8" bolt spacing

  • Squareness between all four plates

Everything must stay aligned.

REAR PLATE METHOD

For the rear mounts, I did not have a clean template. I used what remained of one usable hole:

  • Placed cardboard over the perch

  • Traced from underneath

  • Located center from that reference

Once one plate is made, flip it to create the mirrored side.

Pay close attention to:

  • 1/4" bolt spacing

  • 5/8" bolt spacing

  • Squareness between all four plates

Everything must stay aligned.





CUTTING OUT THE ROTTED METAL

Once all four plates are tacked and square:

  1. Use a thin cutting wheel.

  2. Cut around each plate, leaving the tack welds intact.

  3. Cut the tack welds last.

After removing the rotted metal, unbolt the old plates.

Re-tack the four new plates in position to maintain measurements.

Weld fully and grind smooth.

Now drill the remaining 1-1/2" holes.

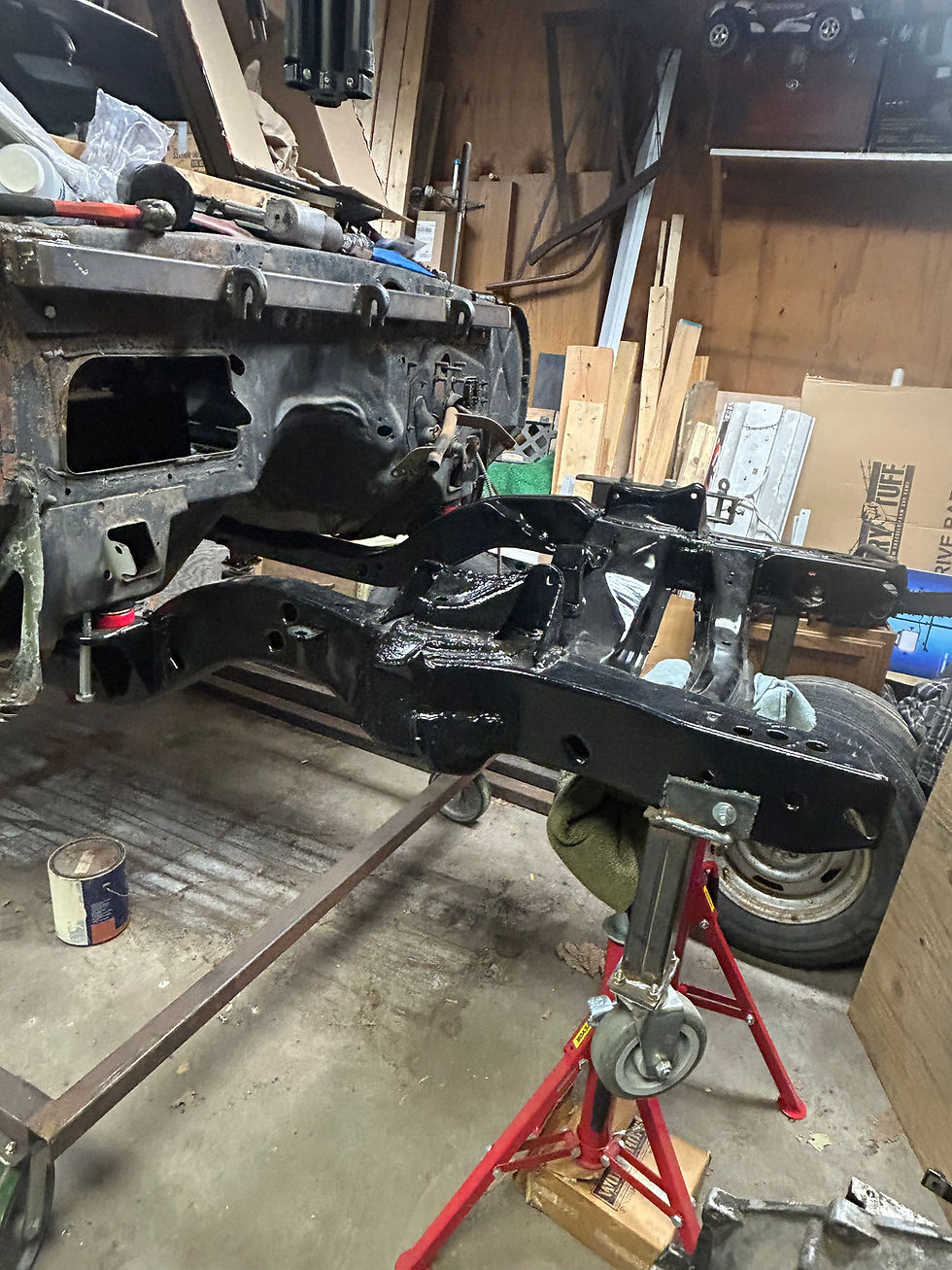

FINISHING

The frame was then sent out for:
